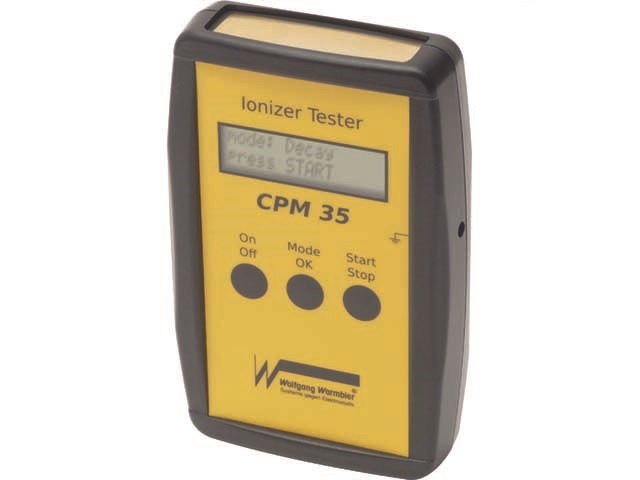

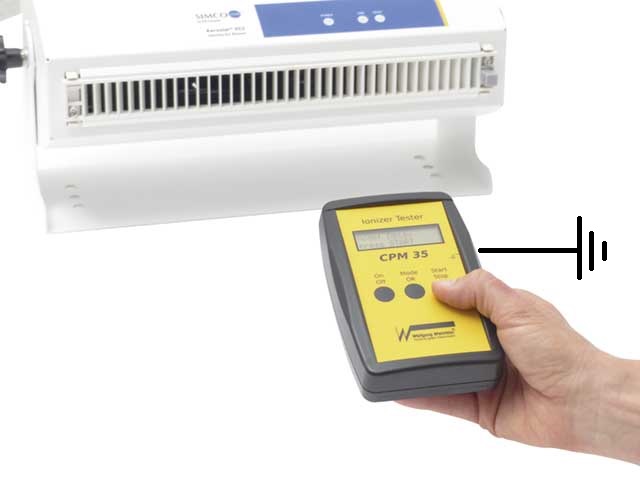

- The CPM 35 is a handheld measuring device for the fully automatic checking of ionizers at the ESD workstation or in machines
- Measuring of the positive and negative discharges as well as the offset voltages
- It can also be used to periodically measure body voltages (Walking Test)
The CPM35 has two modes:
1. Decay:
- Testing the decay time from ± 250 V to ± 100 V
- After a successful testing of the decay time the CPM35 is testing for 10 seconds if the "Offset-Voltage" will be below 35 V
2. Offset/BVT:
- In this mode the first line of the display will permanently indicate the maximum value
- In the second line of the display the maximal values of each polarity will be shown
Offset-Testing:
- For the verification of the offset voltages of ionizers
BVT:

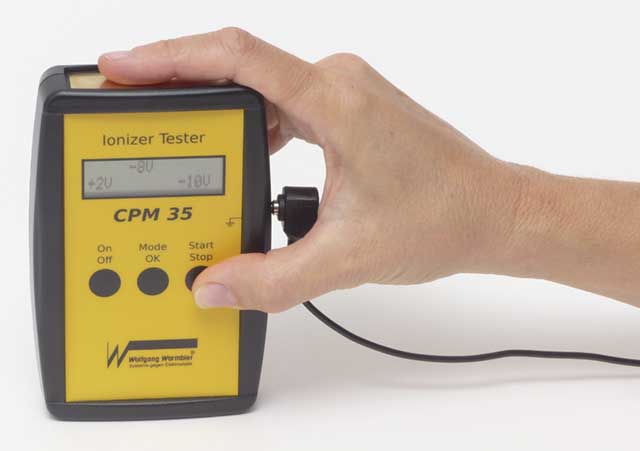

- Body Voltage Test - The CPM35 can test the body voltage during a walking test in an very easy way
- The person needs only to contact his finger to the test electrode.
- Range: ± 250 V
- Display: test results in 2 lines, with backlight
- Power supply: Lithium battery 9V (1,2 Ah)
- Dimension: 140 x 90 x 28 mm
- Weight: 230 g
- Ionizer Tester CPM35
- 9 V Lithium battery
- Grounding cord
- Carrying bag
- Manual German/Englisch
- Calibration Certificate German/English
